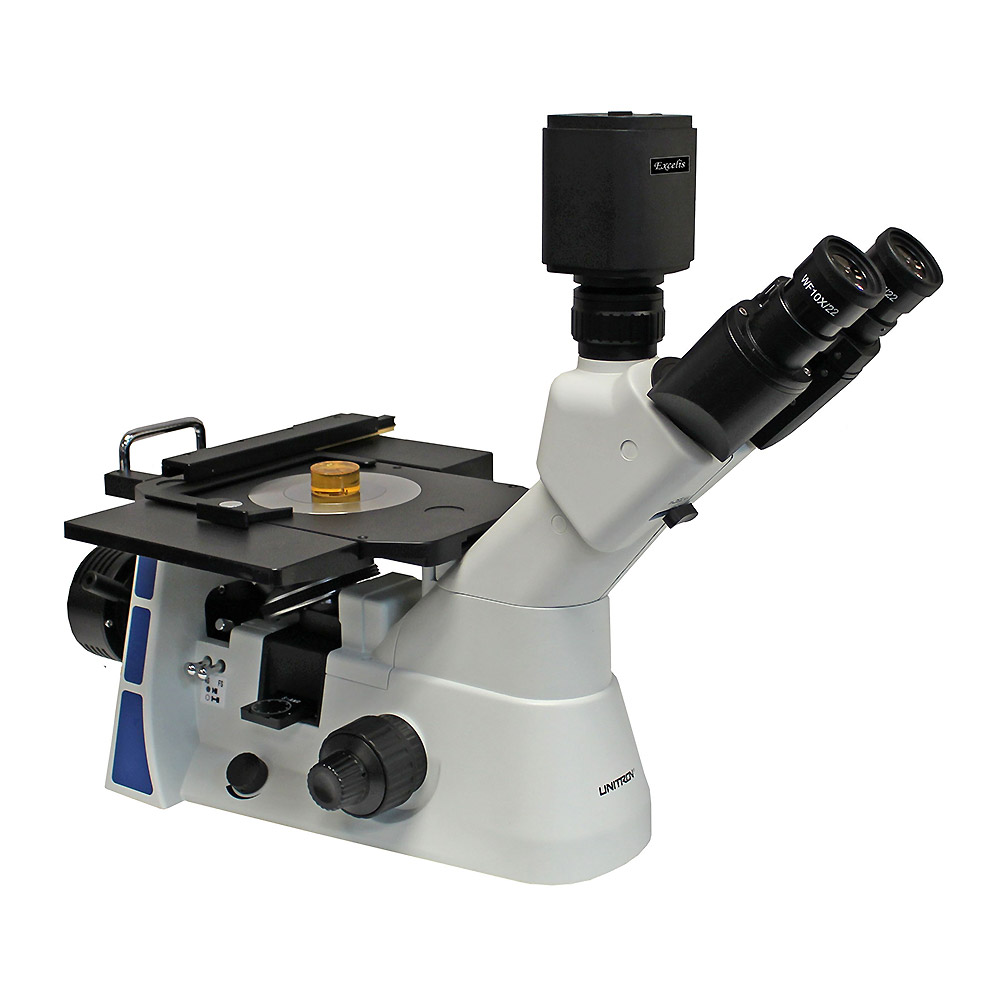

Unitron MEC4 Inverted Metallurgical Microscope 14620


Original price was: $5,475.00.Current price is: $4,927.50.


The Unitron MEC4 Metallurgical microscope has numerous different industrial and professional applications. The trinocular head is inclined at a comfortable 45° and includes 10x/22mm widefield eyepieces with roll down eye guards. The quintuple revolving nosepiece features Infinity Plan objectives of 5x, 10x, 20x, and a Plan Semi Apo 50x. The coaxial focusing system is easy to use and hassle free. The 5 watt LED illumination system has field and aperture diaphragms and a filter slider that can be switched between blue, green, and frosted filters with ease. The mechanical stage includes teardrop stage plates with 12mm and 25mm openings.

Product Specifications:

  • Trinocular head inclined at 45°
  • Widefield eyepieces with 10x/22mm field of view, and roll down eye guards
  • Infinity Plan objectives of 5x, 10x, 20x, and a Plan Semi Apo 50x
  • Quintuple revolving nosepiece
  • Mechanical stage with 12mm and 25mm openings
  • Coaxial coarse and fine focus system
  • 5 watt LED illumination
  • Blue, green, and frosted filters
  • Simple polarizer and analyzer
  • Dust cover and instruction manual

Additional information


Education, Industrial



Product Types

Compound Microscopes
