Unitron Examet-5 Metallurgical Microscope 14350


Original price was: $4,700.00.Current price is: $4,230.00.

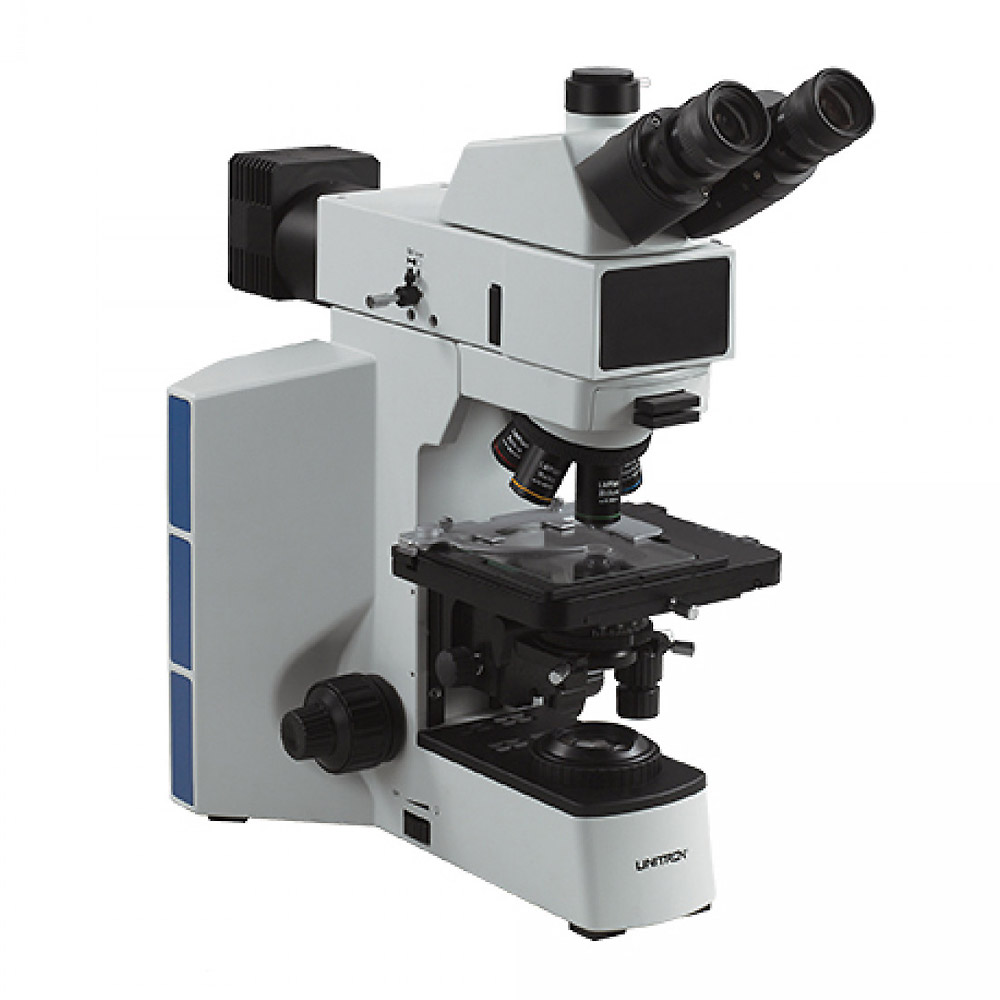

The Unitron Examet-5 reflected light Metallurgical is a microscope suitable for numerous different industrial applications. It comes with a trinocular head inclined at 30° with a full 360° of rotation and it includes widefield 10x/23mm eyepieces. This model uses Infinity LWD Plan achromat objectives for 5x, 10x, and 20x objectives while the 50x is a LWD M Plan Semi-APO. It also comes with an adjustable mechanical stage for specimens up to 50mm’s and 5 watt LED illumination. Samples can easily be brought into focus with the coaxial coarse and fine focus knobs with tension control.

Product Specifications:

  • Choice of either a binocular or trinocular head inclined at 30° with 360° of rotation
  • Widefield eyepieces with 10x magnification and a 23 mm field of view with eye guards
  • Infinity plan objectives 5x, 10x, 20x, Plan Semi Apo 50x
  • Mechanical stage adjustable up to 50mm’s
  • Coaxial coarse/fine focus with tension control
  • 5 watt LED reflected light
  • Optional green, yellow, and neutral density filters available
  • Dust cover and instruction manual

Additional information


Education, Industrial



Product Types

Compound Microscopes
