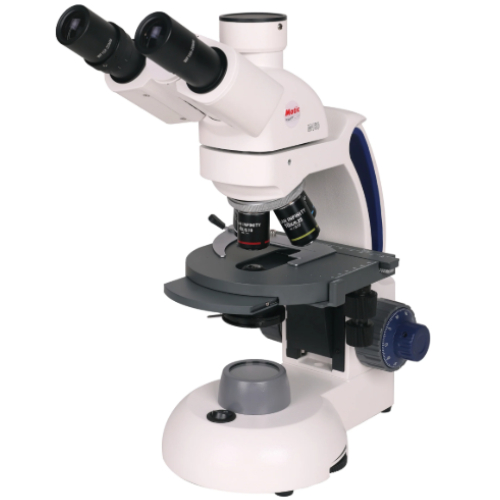

Swift M3802CT-4 Student Trinocular Cordless LED Microscope

Description

The Swift M3802CT-4 Trinocular Cordless LED Microscope is a versatile, high-performance tool designed for advanced educational and technical applications. It features a 45° inclined, fully rotatable trinocular head with a standard C-mount camera port, allowing for ergonomic viewing and digital imaging capabilities. The microscope is equipped with widefield 10× eyepieces and infinity-corrected plan objectives (4×, 10×, 40×R, 100×R), providing total magnifications from 40× to 1000×. Its cordless design, powered by three rechargeable AA NiMH batteries, offers up to 50 hours of use per 8-hour charge, making it ideal for fieldwork and environments without conventional power outlets. Additional features include a large mechanical stage, dual-speed coaxial focusing, and a 1.25 N.A. Abbe condenser with an iris diaphragm for precise illumination control. The microscope’s durable construction and ergonomic design ensure reliability and comfort during extended use. It is backed by Swift Optical’s limited lifetime warranty, underscoring its quality and longevity.

Specifications

Optical System

• Head: Trinocular, 45° inclined, 360° rotatable Siedentopf-style with C-mount camera port

• Eyepieces: Widefield 10× (18 mm field of view), diopter adjustable

• Interpupillary Distance: 54–76 mm

• Objectives:

  • 4× (0.10 N.A.)

  • 10× (0.25 N.A.)

  • 40×R (0.65 N.A.)

  • 100×R (1.25 N.A.)

• Objective Features: Parfocal, parcentered, color-coded; 40×R and 100×R are spring-loaded and sealed

• Nosepiece: Quadruple, ball-bearing mounted, reversed for easy slide access

---

Stage & Focusing

• Stage: Large 143 × 120 mm (5.75″ × 4.75″) mechanical stage

• Controls: Low-profile, ball-bearing mounted with low-position coaxial controls

• Condenser: 1.25 N.A. Abbe with iris diaphragm and filter holder

• Focusing:

  • Coaxial coarse and fine focusing

  • Coarse with tension adjustment

  • Fine focusing graduated for differential measurements

---

Illumination & Power

• Illumination:

  • Cool-white LED rated for 50,000 hours

  • Dimmable with a rheostat

  • Equivalent to a 20-watt tungsten bulb

• Power:

  • Cordless Operation: Up to 50 hours on a single 8-hour charge

  • Batteries: Three AA rechargeable NiMH batteries

  • Charger: Included with automatic shut-off to prevent overcharging

  • Voltage: 110V–220V switching power supply

---

Frame & Build

• Dimensions:

  • Base: 235 × 151 mm (9.25″ × 6″)

  • Height: 362 mm (14.25″)

• Weight: 11 lbs (5 kg)

• Construction: All-metal frame with ergonomic carry handle

---

Additional Features

• Warranty: Limited lifetime warranty

• Included Accessories:

  • Dust cover

  • Power adapter with U.S. plug
