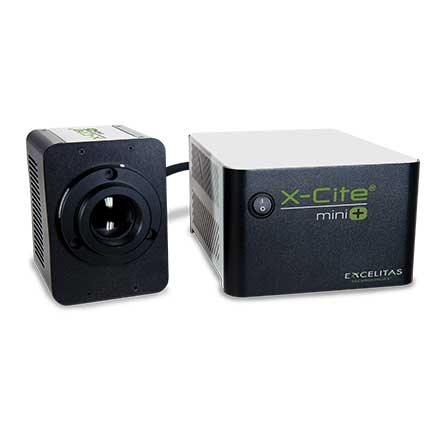

Excelitas X-Cite mini+ XMPS Compact, LED illuminator, 365-700nm, 010-00479R

Description

The X-Cite mini+ comes with built-in controls and includes intuitive fingertip control with speedDIAL, hands-free operation with a foot pedal, and USB and TTL inputs for automated applications. X-Cite mini+ has a 20,000 hour warranty; no lamps to change, no mercury disposal fees and no light guides to replace. With energy-efficient LEDs and the advantage of instant ON/OFF to minimize power consumption, the X-Cite mini+ fits into any research lab’s “go-green” strategy.

Features and Benefits:

• LED Technology: Efficiency, stability, instant ON/OFF, long lifetime, mercury-free
• White Light Excitation: Excitation of commonly used fluorophores such as DAPI, CFP, GFP/FITC, YFP, mCherry/Texas Red, and Cy5
• Direct Coupled: High power excitation
• Multiple Control Options: Simple operation through USB, TTL or speedDIAL
• Small Footprint: Minimal space requirement; less bench-top real estate used
• Optimized Thermal Management: Maximum LED output, lifetime, stability and reliability
• X-Cite Coupling Optics: Efficient optical output and uniformity with highest performing coupling optics

System includes: X-Cite mini+ Head, miniCube, speedDIAL, microscope flange (please specify make and model of your microscope when ordering), accessory kit

Wavelength Range:
Model: XMPS: 365-700 nm

External Power Supply: Universal input 100-240 VAC, 50/60 Hz

Current: 2.4-1.2 A

LED ON/OFF Response Times: 100 µs TTL / 1 ms USB

Control Options: ON/OFF – TTL compatible, speedDIAL, RS-232 commands (SDK available), USB

I/O Connections: BNC input, USB (B-type), 3.5 mm stereo plug

Head Dimensions: 100 mm x 135 mm x 110 mm (W x H x D)

Controller Dimensions: 180 mm x 110 mm x 230 mm (W x H x D)

speedDIAL Dimensions: 80 mm x 59 mm x 112 mm (W x H x D)

Weight: 3.4 kg (7.5 lb)

Certifications: RoHS, CE

Warranty: LEDs – 20,000 hours; All other X-Cite mini+ components – 1 year, parts and labor
