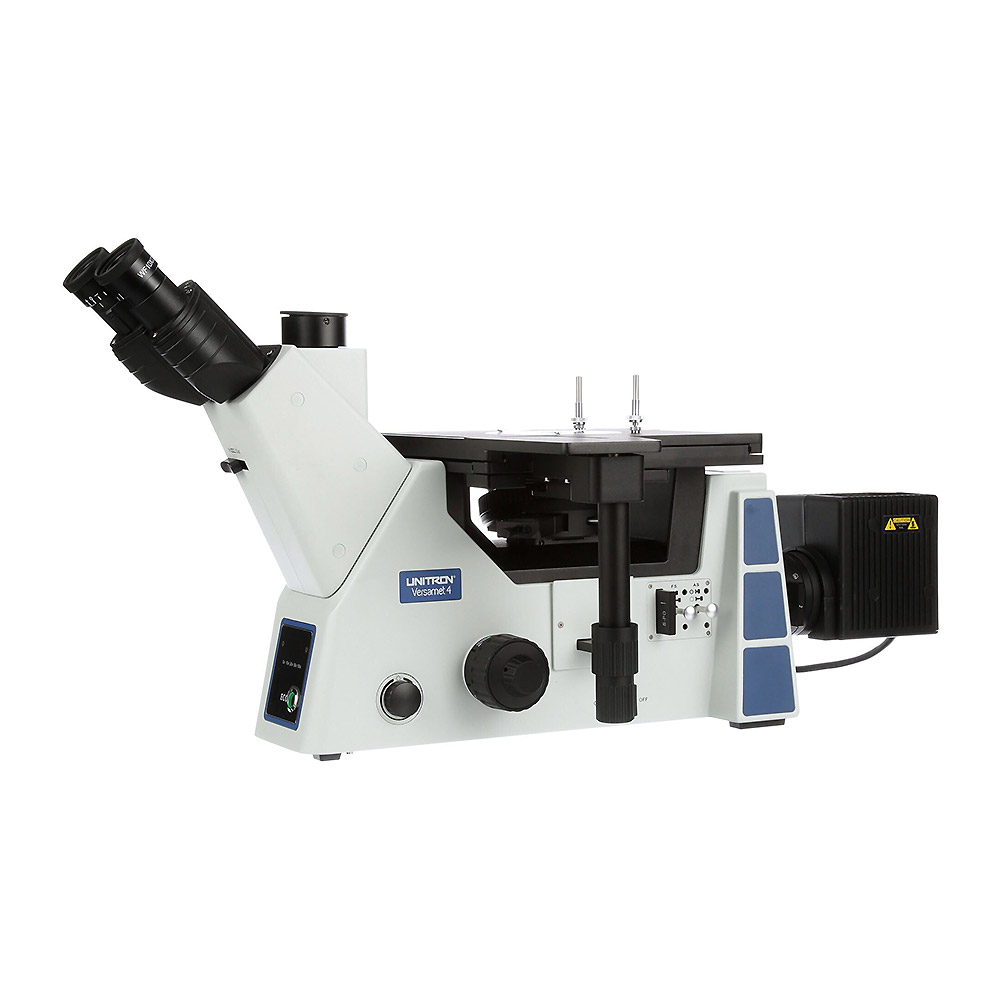

Unitron Versamet 4 Metallurgical Inverted Microscope 15000-BD




The Unitron Versamet 4 Metallurgical inverted microscope has numerous different industrial and professional applications. The trinocular head is inclined at a comfortable 45° and has 10x/22mm widefield eyepieces with roll down eye guards. The encoded quintuple revolving nosepiece comes with Infinity LWD BF/DF Plan achromat objectives for 5x, 10x, and 20x objectives while the 50x is a LWD BF/DF M Plan Semi-APO. The three layer rackless stage comes with coaxial control with teardrop and crescent shaped plate inserts. This model features easy to use coaxial coarse/fine focusing and 12v 100w halogen illumination.

Product Specifications:

  • Trinocular head inclined at 45°
  • 10x/22mm Widefield eyepieces with rolldown eye guards
  • Infinity Plan BF/DF objectives with magnification of 5x, 10x, 20x
  • 50x LWD BF/DF M Plan Semi-APO
  • Encoded quintuple revolving nosepiece w/DIC slot
  • Three layer rackless mechanical stage with coaxial controls, teardrop and crescent shaped plate inserts
  • Coaxial coarse and fine focusing
  • Polarizer and analyzer
  • DIC capable
  • 12v 100w Halogen illumination
  • Dust cover and instruction manual

Additional information


Education, Industrial



Product Types

Compound Microscopes
