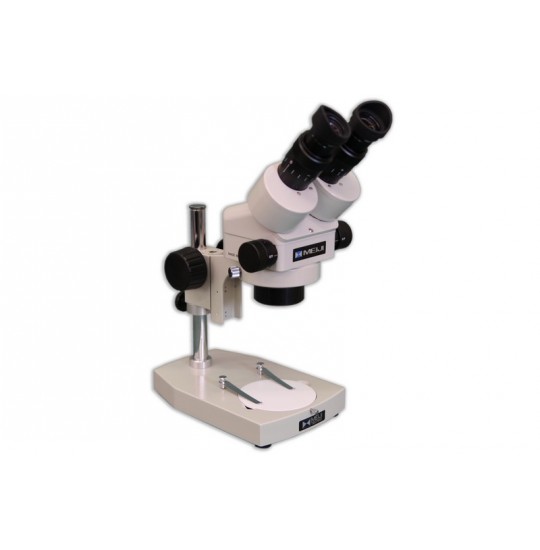

Meiji EMZ-5D body offers detent click-stops and delivers sharp, high-contrast images and an excellent zoom range of 6.5:1 that provides exceptionally high resolution images all throughout the zoom range. The EMZ-5D employs Greenough optics, for improved image flatness and contrast. As a result images are brighter and more distinct even at the periphery of the field of view. With the large zoom range, the EMZ-5D offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application.
The P stand is Meiji Techno America’s basic pole stand with “F” focusing holder mounted on a plain base. It accepts our EMZ, EMT and EMF stereo microscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The P stand’s compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.
Included is the MA502 Super Widefield Eyepiece 10X (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0
