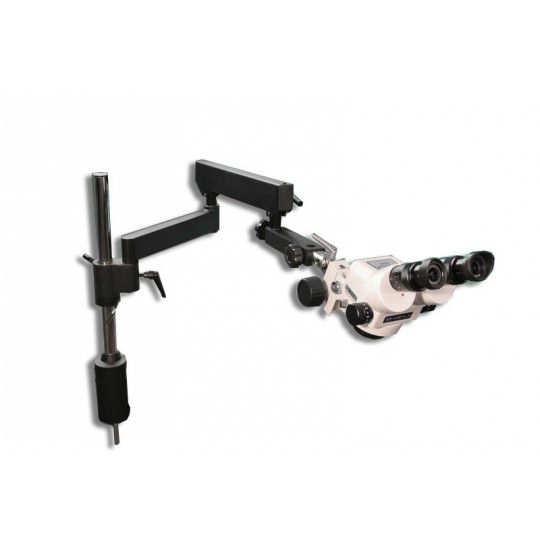

Meiji EMZ-5 stereomicroscope+MA502+FS+FA-3

Meiji

$2,400.00 $2,160.00

Description

The Meiji EMZ-5 stereomicroscope body delivers sharp, high-contrast images and an excellent zoom range of 6.5:1. It provides exceptionally high resolution images all throughout the zoom range. The EMZ-5 employs greenough optics, for improved image flatness and contrast. As a result, images are brighter and more distinct even at the periphery of the field of view. With the large zoom range, the EMZ-5 offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application.

Included is the MA502 Super Widefield Eyepiece 10X (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0.

The FS Coarse Focus Block/Holder is a tilting focus holder with an integral adjustable illuminator port. It has a rack and pinion mount that allows smooth and precise focusing over 55mm of travel. The coarse focus mechanism incorporates a slip clutch and tension adjustment.

The Meiji Techno FA-3 Triple Joint Articulating Table Clamp Boom stand is an industrial type articulating arm stand with 16mm diameter mounting pin ready for a FS & FSC focus holder that is inclinable 180° and rotated 360° (optional) or a OS-SP20MM – 20mm drop down post (optional) for F focus block. Great for examining industrial parts and for inspection of larger or awkward shaped item, this articulating arm stand provides ultimate versatility without sacrificing stability. This articulated stand weighs about 30 lbs. and comes with a 15.25”, 387.35mm High Stainless Steel Pillar and 37″, 939mm extended length.

Additional information

Applications

Industrial, Measuring

Brands

Meiji

Product Types

Stereo Microscopes
